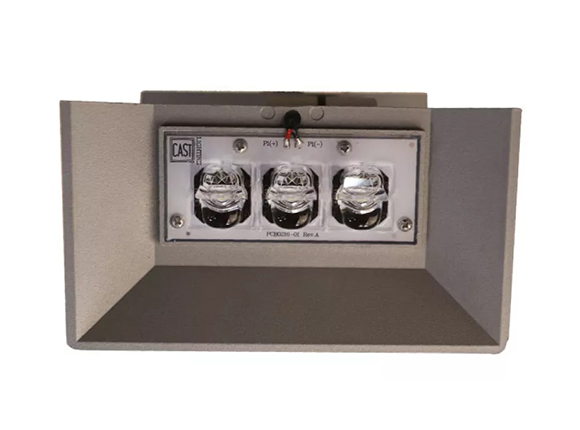

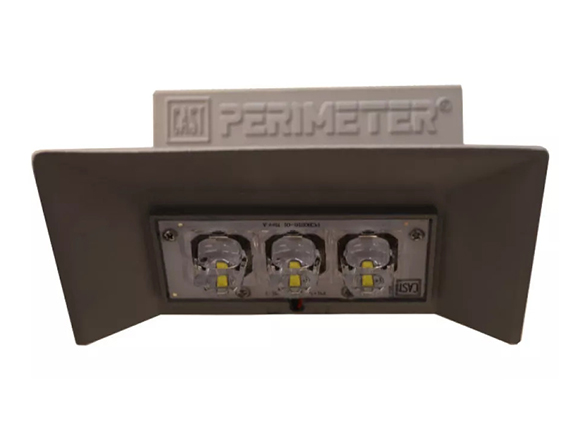

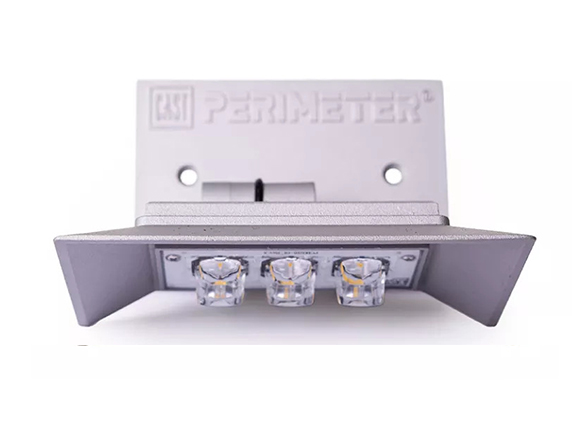

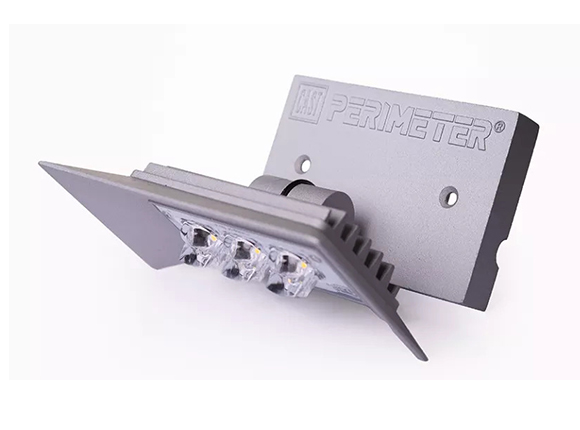

Generation 2 Wall Pack Light
Mount on walls, posts, or even fences using our new CPL3SAM1 mounting system. Unit is also designed to attach to a one gang Carlon / Cantex grey outdoor junction box. Unit provided with low voltage “mouse” holes on each side to accommodate low voltage cable when installing on a flat surface. Ideal wall pack to use in conjunction with CPL316 Series Perimeter Light to deliver seamless optical performance. Fast Quick-Connect wire harness. Excellent light distribution and photometrics.
- Commercial Buildings, Alleys, any walled surface that needs illumination.
- Best performance space 20 feet (6 Meters) apart, mounted 10 feet (3.5 Meters) off grade. See LM79 report and plot file for complete lumen distribution.
- Seamless adjustment range off horizontal from 1°-32°.
- IP66 Rated Fully sealed driver and optics.
- Compact Size:
- Back Plate: Height 3.3”(84mm) Width 5” (128 mm) Thickness .80” (20mm)
- Head extends from front of back Plate 4.2” (106 mm)
- Head Width 6.25” (160 mm) Head Thickness Plus Optics 1.4” (35 mm)
- 60,500 Hr. Life (L70)
- Surge & Spike Protected
- Safe Low Voltage Operation range from 12-26 VAC/VDC
- Quality Cree® LED’s 4500K
- 1382 Lumens. Efficacy 105.7 Lm/w
- Power Use @ 17 VDC .757 A / 12.9 Watts
