Lighting Power Box 600 to 1200 Watts


Available | Within 14-21 Days | Free Delivery

600 Watt DC Transformer

lighting power supplies designed to operate on a set program, or as part of an automated lighting solution to deter threats and are available in 600 Watts and 1200 Watts.

1200 Watt DC Transformer

Upgrade to a 1200 Watt DC Transformer

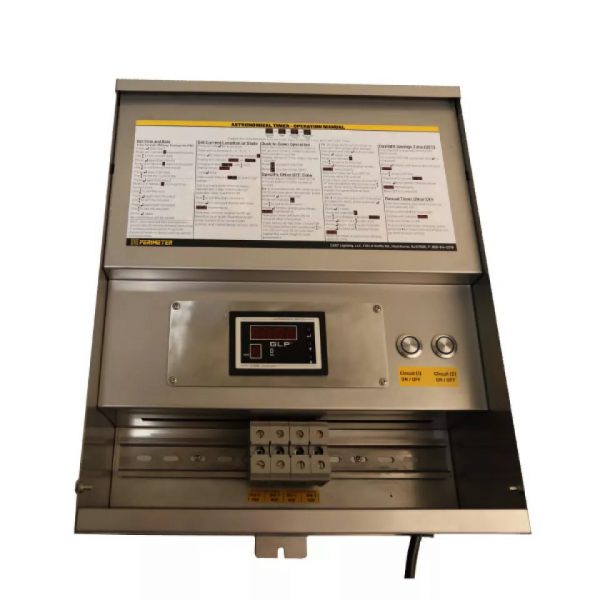

Lighting Power Box 600 to 1200 Watts DC Power Supply

The CAST Perimeter® Lighting DC Transformers are low voltage perimeter lighting power supplies designed to operate on a set program, or as part of an automated lighting solution to deter threats and are available in 600 Watts and 1200 Watts.


Customized GPS on/off dusk to dawn control, days of the week programming.


Integrate with 3rd party perimeter detection systems using dry contact signals from cameras, motion, radar, laser, etc. to turn on/off lights to automatically activate, surprise, and disorient intruders without the involvement of on-site security guards!


High efficacy DC power, eliminates flicker, and produces crisp images that will reduce VMS storage and save money.


Auto-sensing primary power range from 100VAC to 277VAC accommodates virtually all available power: 115V, 120V, 230V, 240V, 208V, 277V, and European 220V1Phase. 47-63 Hz Range.


*Orders are only for Lighting orders when Accessories are needed and are not sold individually*



  • Safe, simple low voltage power supply available in 600 Watts and 1200 Watts.
  • Outdoor mount, 304 stainless steel enclosure.
  • Secondary short circuit protection. Automatic constant current limiting recovering after fault condition is removed.
  • Provides 26 Volts DC secondary power under any load condition.
  • Extra room to accommodate optional 125W 24V DC power supply for other perimeter devices, such as CCTV camera systems which can operate 24/7/365.
  • Global GPS time clock for auto-adjusting (or customizable) dusk to dawn control and days of the week operation.
  • Seven-year warranty.



Dimensions: Height 17.5″ (44.5cm), Width 13.0″ (33.0cm), Depth 7.0″ (18.0cm).

Weight: 600 Watt unit: 30.0 lbs. (13.6 Kilograms), 1200 Watt unit: 35.0 lbs. (16.0 Kilograms).

Consumed Amps 600 Watts: 115VAC 7 Amps, 230 VAC 3.3 Amps, 277VAC 2.0 Amps.

Consumed Amps 1200 Watts: 115VAC 14 Amps, 230VAC 6.6 Amps, 277VAC 6.0 Amps.

Ambient Operating Range Power Supply Capacity Rating: -40 to +55C @85% capacity (load all power supplies to 85% capacity)

UL listed to 2108 standard for safety.
