Our Products

1080P Indoor 8 Channel Vehicle Kit

$2,300.00

. AHD 1080P high video quality transmission, up to 1920×1080 pixels.
. 12 pcs IR LED ; 15M IR range & 2.8 / 3.6 mm lens.
. User friendly player software, easy to operation.
. Overall quick search event log.
. The full recording time and date can be showing in the monitor directly.
. Auto recording after power supplied.
. Removable HDD Track compatible with 2.5″ HDD or SSD.

Add a Hard Drive

Add 2 or 4 Terabyte Hard Drive

Add Some Cable

Recommended Cable for Camera and Recorder

Description

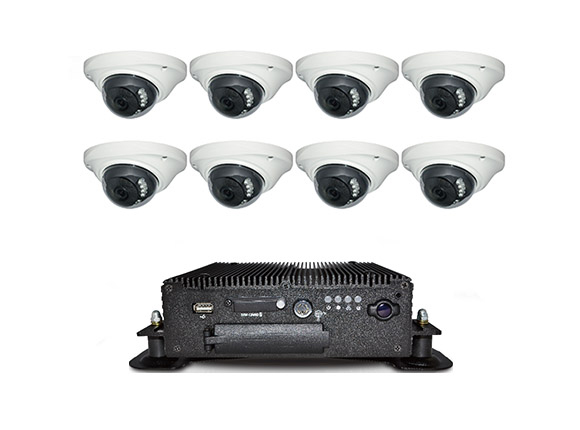

1080P Indoor 8 Channel Vehicle Kit

. AHD 1080P 8 channel 4g vehicle kit high with video quality transmission, up to 1920×1080 pixels.
. 12 pcs IR LED ; 3~5M IR range.
. 1080p indoor 4 channel 4g vehicle kit with 2.8 / 3.6 mm lens.
. IP Rating: IP66.
. Support 4CH recording cameras at the same time to record driving images completely.
. Wide range of power input 8V~36V, suitable for any kinds of vehicles.
. Auto recording after power supplied.
. H.264 real time compression chip, Higher compression ratio and keep clear resolution.
. Recording format: 1080P、720P、960H、D1、CIF, used for different demand.
. VGA and AV terminal video output to connect from the mobile DVR to an LCD monitor for on-site operation.
. x6 alarm input, x2 alarm output, x2 Audio input and x1 Audio output.
. Built-in G-sensor , automatically detect crush, trig force recording.
. Optional WIFI and 3G network, different selection of connecting.
. Complete Video Record List. Overall quick search event log.
. Completely record driving video and sound to make sure attribution of responsibility when accident occurred.
. Provide AVI convert function to users playback on PC.
. Power management function, Extended record after power off.
. G-Mouse optional, completely record your driving position and speed.
. 3G/4G module optional, control driving situation of vehicles anytime.



Specifications

Camera
Pick Up Element 1/2.9″ Sony Exmor CMOS Sensor
Video System NTSC / PAL
Image Signal Process Digital Signal Processor
Lens 2.8mm / 3.6mm
Number Of Pixel 1920 (Horizontal) x 1080(Vertical)
Horizontal Resolution 1080P@30fps
Power Supply DC 12 ± 1V
Power Consumption 120mA (IR Off);200mA (IR On)
Electronic Shutter NTSC: 1/30~1/50,000 Sec. PAL: 1/25~1/50,000 Sec
White Balance Auto
Gain Control Auto
S/N Ratio ≧50dB
Day Night Auto Switch Support
LEDs 12 PCS
IR Range 15M
IR Wavelength 850nm
Minimum Illumination 0.01 LUX / F1.2 (IR ON)
Output AHD or CVBS (Default setting: AHD Mode)
Language English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish /Polish / Russian / Portuguese / Dutch / Turkish
Operating Temperature -20℃~50℃
Dimensions (H×W×D) Φ 120 x 60 mm
Weight About 300g
Video Format NTSC / PAL
OS Embedded Linux
Video Input 4 Cameras
Camera Power Output 4 Power, 12V / 400mA
Video Output x1 Video Output (optional VGA or CVBS)
Audio Input x2 Audio Input
Audio Output x1 Audio Output
Alarm I/O x6 Alarm Input ; x2 Alarm Output
Operation Interface GUI
Language English/ Traditional Chinese/ Simplified Chinese
Display NTSC 240 Fps
PAL 200 Fps
Recording Frame NTSC 4CH 1080P/720P @30FPS/CH
PAL 4CH 1080P/720P @30FPS/CH
Display Mode 1ch / 4ch / 9ch
Simplex Mode Record / Playback
Resolution Display CVBS NTSC 960 x 480   / PAL 960 x 576
VGA 800 x 600
Recording NTSC 1920 x 1080@1080P
1280 x 720@720P
960 x 480@960H
720 x 480@D1
PAL 1920 x 1080@1080P
1280 x 720@720P
960 x 576@960H
720 x 576@D1
Storage 2.5”Removable SATA HDD / SD Card
Backup Device Usb 2.0 Flash Driver、2.5”SATA Removable HDD
Playback Mode Time / Date, Events
Full Screen Yes
Led Indicator 4 Led (LAN、REC、GPS、POWER)
Signal Loss Detector Yes
Buzzer Alarm Output Yes
RS485 Yes
GPS Yes (Optional G-mouse)
G-sensor Yes
3G/4G Yes (Optional VVH-MD42D-3GA)
WiFi Yes (Optional )
IR Remoter Yes
Watchdog Stop, Automatically Return To Recording Mode When Power Back.
Power Supply (1) DC 8V~36V
(2)Acc Extended Recording By Setting Software.
Dimension 250mm x 174.8mm x 69.5mm
Operate Temperature -20°C~65°C
Weight 1.85kg (With Bracket And HDD )
