4 Channel Hybrid SDI DVR


Available | Within 7-14 Days | Free Delivery

This 4 Channel SDI Recorder Features:


4 Channel SDI Hybrid DVR Series, Comes with 2 TB hard Drive, But is also a AHD, EX-SDI, HD_SDI, TVI, CVI, 960H, IP 7brid DVR, RTSP dual recording, P2P Service, Transcoding Playback, Push Notification, Dual LAN Port, UHD display & FHD Spot, Two way audio. Can use up to 8 megapixel cameras.

Add Extra Hard Drive Storage

Comes with 4 Terabyte but can Upgrade to 6, 8 or 12 Terabyte


4 Channel Hybrid SDI DVR Recorder for domestic areas


At CCTVAustralia we are proud to present our range of SDI DVR recorders as we believe that this 4 Channel SDI DVR technology is the future for Digital megapixel Clarity performance. This model sdi dvr is a hybrid 4K DVR which has the capability to use different technology cameras as well as upgrade up to 4K resolution when these cameras are released. Quality is important to CCTVAustralia and we have searched long and hard for a reliable supplier in this Technology we know you will be safe with these Hybrid dvr hd sdi.


Webclient for Safari for MAC PC is not available CMS Software needs to be installed on the MAC PC to view through the network & watch live on MAC PC computer. CMS stands for Content Management Software which comes on the Disc for the dvr sdi to be loaded on to your computer. This software lets you view multiple locations at once or just one location if needed.


This DVR also has the capability to have a Audio device connected and can be networked using Internet Explorer and Mac to view over the internet. This DVR also has mobile phone monitoring and can be connected to a LCD screen via HDMI.This DVR does not have a Spot output for viewing two LCD screens in different areas all our DVR`s will give you this capability. This DVR has a 2 Year Warranty.

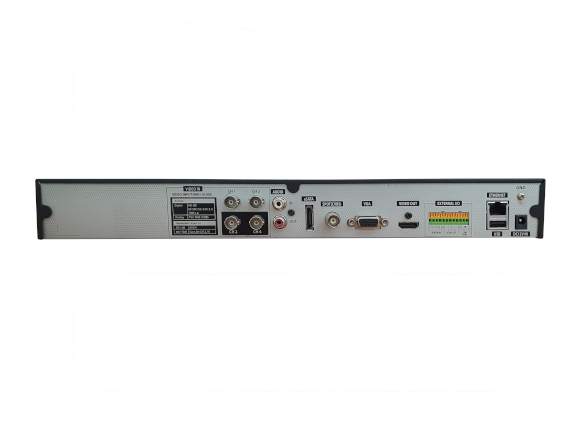

Input 4 BNC
Input Resolution 8MP, 4MP, 3MP, 2MP, 960H
Output 1 HDMI , 1 VGA , 2 BNC ( 1 HD , 1 SD)
Output Resolution 4K, FHD, SXGA, XGA
Recording Speed 15fps/ch(4MP), 30fps/ch(2MP)
Resolution 8MP, 4MP, 3MP, 2MP, 960H
Audio Input 4RCA
Output 1 HDMI, 1 RCA
Interface Senser In / Out 4 / 1 – NC / NO
USB 2 x USB 2.0
PTZ / Keyboard 2 x RS485 – Terminal Block
ATM /POS Ethernet POS
Network Interface 2 x Ethernet 10/100/1G
Compression H.264. JPEG
Speed 10fps(4MP), 20fps(2MP)
Resolution Max. 4MP
Storage Primary / Enternal 2 HDD or ( 1 HDD +  1 eSATA)
System OS Embedded Linux (Built-in Flash Memory)
Pre / Post-Alarm 5sec /5sec~5min
Recording Mode Continuous, Event, Schedule
Data Search Smart, Panorama, Calendar, Multi Day / Time, Event, Go to Time
Backup Interface USB, Network
Backup Type Video(RMS, AVI), Capture(JPEG), Log List, Setup Data
Alarm Action Buzzer, PIZ Preset, E-mail, Relay, Spot, Event Popup, Callback, FTP, Push
User 15 Users (Admin, User1 ~ User14)
Network Viewer Netus, VMS, Web Viewer, Mac Viewer, SmartEyes_Pro(iOS, Androld)
General Size 340 x 60 x 300 mm
Weight(w/o HDD) 3kg
Temp / Humidity 5 ~ 40℃ /10% ~80%
Power Supply 12V / 3.3A
Power Consumption 40 Watts
