16 Channel 4k SDI Pro DVR


Available | Within 7-14 Days | Free Delivery

This Professional SDI DVR Features:


16 Channel SDI Digital Hybrid DVR Series, Comes with 6 TB hard Drive, But is also a AHD EX-SDI, HD_SDI, TVI, CVI, 960H, IP 7brid DVR, RTSP dual recording, P2P Service, Transcoding Playback, Push Notification, Dual LAN Port, UHD display & FHD Spot, Two way audio. Can use up to 8 megapixel cameras. also comes with 6 bays of hard drive Storage.

Add Extra Hard Drive Storage

Comes with 6 Terabyte but can Upgrade to 12, 18, 24 Terabyte


Professional SDI 4K 16 Channel DVR for large applications


The 16 Channel SDI Professional 4K DVR is ideal to be used for a commercial installationThe DVR is a Hybrid 4K SDI DVR with AHD EX-SDI, HD_SDI, TVI, CVI, 960H, IP resolution. At CCTVAustralia we have researched our range of SDI DVR’s and have found this 16 channel security dvr to be reliable in software with higher frame rates for better performance that is needed if you are serious about a High performance application. These DVR’s come with HDMI & VGA inputs for High Definition LCD  screen viewing.


This professional security dvr 16 channel has the option of having a 6 hard disk drives in the DVR storage on request depending how many hard drives you want for the amount of recording needed. The size of the Hard drives can be 6 x 6 Terabyte Surveillance Hard Drives.The hard disk for dvr is ideal for those who want many weeks if not months of recording depending how the settings are done a possible 3-5 months of storage.


This DVR also comes with CMS software which stands for Content Management Software which comes on the Disc for the DVR to be loaded on to your computer. This software lets you view multiple DVR locations at once or just one location if needed. 4 Audio ports can also be used with this DVR if needed to hear certain areas of concern.


To view the higher resolution of SDI DVR’s you must use SDI 4K or 4 Megapixel cameras with this DVR otherwise you will not get the full resolution of this technology. You can also use existing 1080P, 720P &  960H Cameras and also the older D1 CCTV cameras with this DVR which have been around for many years. This DVR can be used for a replacement of old DVR’s if you want to keep the old cameras & update at a later time. This DVR comes with a 2 year warranty.

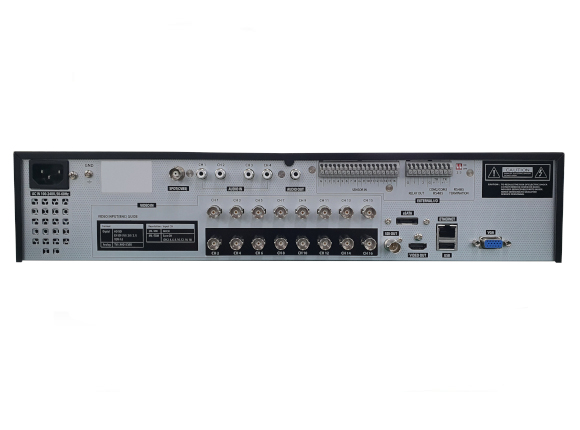

Video Input 16 BNC
Input Resolution 8MP, 4MP, 3MP, 2MP, 960H
Output 1 HDMI , 1 VGA , 2 BNC ( 1 HD , 1 SD)
Output Resolution 4K, FHD, SXGA, XGA
Recording Speed 15fps/ch(4MP), 30fps/ch(2MP)
Resolution 8MP, 4MP, 3MP, 2MP, 960H
Audio Input 4RCA
Output 1 HDMI, 1 RCA
Interface Senser In / Out 16 / 4 – NC / NO
USB 2 x USB 2.0
PTZ / Keyboard 2 x RS485 – Terminal Block
ATM /POS Ethernet POS
Network Interface 2 x Ethernet 10/100/1G
Compression H.264. JPEG
Speed 10fps(4MP), 20fps(2MP)
Resolution Max. 4MP
Storage Primary / Enternal 6 HDD, 2 eSATA
System OS Embedded Linux (Built-in Flash Memory)
Pre / Post-Alarm 5sec /5sec~5min
Recording Mode Continuous, Event, Schedule
Data Search Smart, Panorama, Calendar, Multi Day / Time, Event, Go to Time
Backup Interface USB, Network
Backup Type Video(RMS, AVI), Capture(JPEG), Log List, Setup Data
Alarm Action Buzzer, PIZ Preset, E-mail, Relay, Spot, Event Popup, Callback, FTP, Push
User 15 Users (Admin, User1 ~ User14)
Network Viewer Netus, VMS, Web Viewer, Mac Viewer, SmartEyes_Pro(iOS, Androld)
General Size 440 x 88 x 430 mm
Weight(w/o HDD) 8kg
Temp / Humidity 5 ~ 40℃ /10% ~80%
Power Supply AC 100~250V,50/60 Hz
Power Consumption 80 Watts
