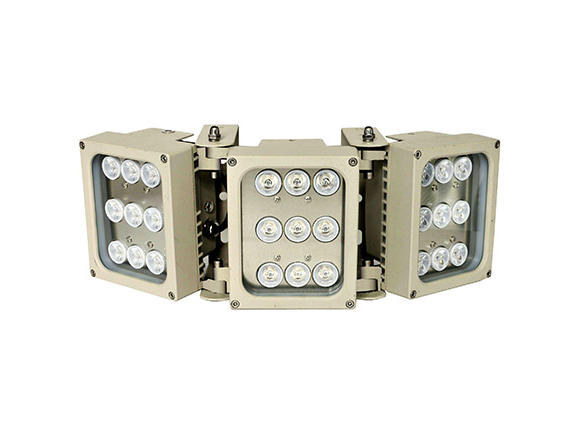

High Power Infra Red illuminator with 27 pieces LED
Two stages of constant current circuit avoid LED away from instantly impulse impact when started.
Low failure rate of products is guaranteed by the professional in-house optimized independent circuit technology, which has been widely used in our LED illuminators for more than 5 years.
Wide edge of silica gel circle and water stop line ensure IP66 waterproof and dustproof level.
Twice direct cooling heat sink processing enable to increase the cooling coefficient and prolong the service life of the product.
Patent design hexagonal spherical light sensor more accurately responses ambient brightness and improves accuracy of automatic light control.
Flexible angle adjustable bracket can extend the illuminance range widely.
Robust cooling fin design is available the illuminator working at -40℃ to 50℃.
Super energy saving circuit with low electrical power consumption.
Super power dot-matrix IR LED with strong light effect, long service life and low light decline feature.
High efficient twice optical lens processing achieves 90% of the luminous efficiency.
The housing adopts high thermal conductivity aluminum to enhance heat dispersion property.
Stainless steel bracket and screw ensure low maintenance.
Wide Range of Application
Recommended for security at ports, railway systems, border, prisons, traffic LRP/ANPR, ITS as well as large public places surveillance.
* IMPORTANT When Purchasing from our website the correct Beam angle & IR distance will be optional the price will remain the same for all sizes.*
Model for selection
Model Beam angle IR distance(850nm), 30°– 90° 170 Meters-100 Meters, 45°–150° 110 Meters-65 Meters, 60°–180° 80 Meters-50 Meters, 90°– 200° 60 Meters-40 Meters, 120°– 230° 40 Meters-30 Meters
*IR distance is tested by 1/3″ CCD Camera.
To achieve the distance needed, please pay attention to your camera specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens.
