Description

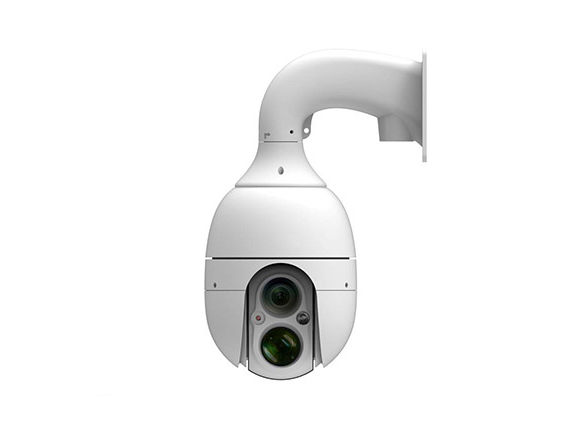

1440P AHD IR Outdoor Pan Tilt Zoom 30 x Optical Zoom

This PTZ is a 4 megapixel AHD Outdoor PTZ 30x optical zoom ptz dome camera comes in an outdoor weatherproof housing with a built in heater and fan, and wall mount bracket. The pan tilt and zoom may be controlled by DVR using Pelco D & Pelco P protocol compatibility but can also be controlled using a keyboard . This cctv ptz camera is a speed dome capable of 30x optical zoom and supports 2 megapixel AHD Resolution.

This ptz surveillance camera comes with wdr security camera settings as this setting can be important if there is major sunlit areas that cause to much brightness such as front and back entrance doorway areas or dark areas where some extra pick up of lighting is needed. WDR cctv camera are recommended for those who are more serious about lighting conditions.

The PTZ has a 150 Meter infrared camera Night Vision capability with two specialised Led`s utilising the latest technology in Infra Red transmission. The infrared light camera distance will allow you to see fence lines that need to be toured as well as gate entrance areas and open oval areas. The 150 Meter Infra Red will reflect of the ground surface letting you see at night in black and white.

The PTZ is a great choice for commercial applications such as Storage Yards and Business premises. You can connect the PTZ camera to be control with our recommended 4K/1440P AHD DVR’s which are on this website in regards to AHD technology. This PTZ camera has a 2 year warranty.

Specifications

Camera
Image Sensor	1/2.8″ Progressive Scan CMOS Sensor
Sync System	Internal
Resolution & Frame Rate	H.264: 1080p @ 30fps, MJPEG: 1080p @ 30fps
Video Output	Main: AHD, Sub: CVBS
Min. Illumination	0.00001 @ F1.6 (AGC 30, Sens-up x32), IR LED On: 0Lux
S/N Ratio	More than 52dB
Zoom Ratio	Optical x30 Zoom, Digital x20 Zoom (Total x600)
Lens Type	f= 4.3mm (WIDE) ~ 129.0mm (TELE), F1.6 ~ F5.0
Angle of View	H:65.1°(Wide)~2.34°(Tele), V:43.32°(Wide)~2.34°(Tele)
IR LED	2 IR LEDs (Distance: 150m)
Pan/ Tilt
Pan/Tilt angle	360° Endless / 92°
Pan Speed	0.1° ~ 240°/sec (64 Levels), Preset: 360°/sec
Preset point	250 Presets
Alarm in/out	4 Inputs / 1 Relay Output
Function
Day & Night	Color / Auto / BW
Back Light	Off / HLC / BLC / WDR
White Balance	ATW/ AWC/ Manual/ Indoor/ Outdoor
AGC	Low, Medium, Max
DNR	Off/Low/Middle/High(3D+2D)
Privacy Mask	8 Zones
Motion Detection	1 Zone
Color Level	Level
Stibilize	On/Off
Defog	On/Off
Time Schedule	On/Off
General
Dimensions	206.8(W) x 450.5(H) x 303.4(D)mm
Power	24VAC, 40W
Operating Temperature	(-)40℃ ~ (+)50℃
Operating Humidity	95% RH or less
