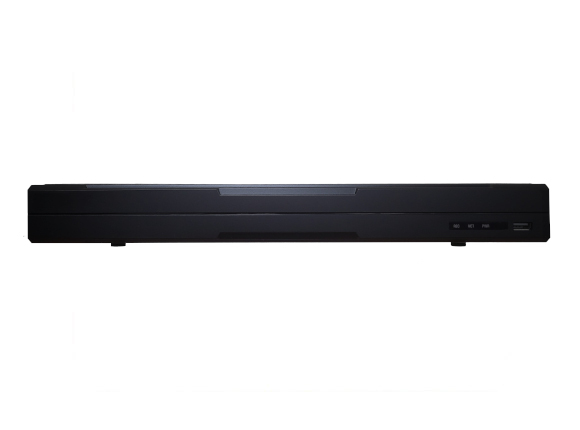

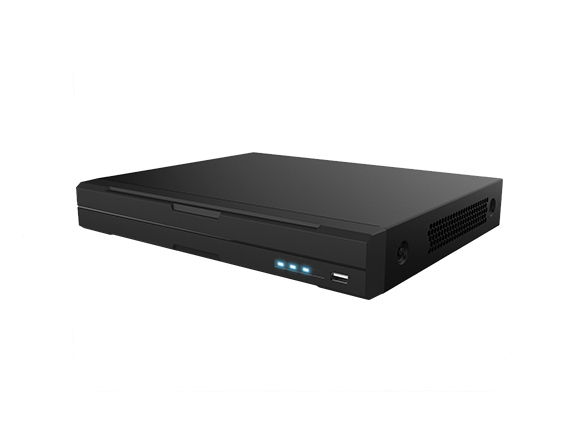

| Video input format | BNC | AHD, TVI, CVBS(960H,SD) |
| IP(Ethernet) | H.264, H.265
Protocol : WESP, Onvif Profile S (all ch support) |
| Resolution / Frame Rate | AHD | 1280×720@30fps, 1280×720@25fps
1920×1080@30fps, 1920×1080@25fps
2560×1440@30fps, 2560×1440@25fps
2560×1944@20fps, 2560×1944@20fps |
| TVI | 1280×720@30fps, 1280×720@25fps
1920×1080@30fps, 1920×1080@25fps
2560×1440@30fps, 2560×1440@25fps
2560×1944@20fps, 2560×1944@20fps |
| CVBS(960H) | 960×480@60i, 720×480@60i
960×576@50i, 720×576@50i |
| IP | 1st stream: 1280×720~2048×1536
2nd stream: max 720×576 |
| Connectors | 4ch, 75Ω BNC connector |
| CoC | Control over Coax@AHD,TVI |
| VIDEO OUTPUT |
|---|
| Video output | Resolution | HDMI : 1920×1080
VGA : 1920×1080, 1280×1024, 1024×768
BNC(CVBS) : 720×480, 720×576 |
| Modes | HDMI main + VGA spot
HDMI main + CVBS spot
HDMI/VGA Duplicate
HDMI/CVBS Duplicate
HDMI main + VGA(Service Channel)
HDMI main + CVBS(Service Channel) |
| BNC(CVBS) | 1, 4 split-screen, Switching |
| RECORDING |
|---|
| Compression | H.264 / H.265 / JPEG |
| Resolution | 2560×1944, 2560×1440, 1920×1080, 960×480 |
| Rate | Total 120 fps, Max 30fps/ch @ 1920×1080
Total 60 fps, Max 15fps/ch @ 2560×1440
Total 40 fps, Max 10fps/ch @ 2560×1944 |
| Quality | 10 levels up to (Default – Q7) – H.264 : 4Mbps@2M, 6Mbps@4M, 6Mbps@5M – H.265 : 3Mbps@2M, 4Mbps@4M, 4Mbps@5M |
| IP Camera | Max Bitrate 16Mbps (Main Stream) / 2.4Mbps(Sub Stream) |
| Mode | Normal/Event Record, Schedule/Event Record, Emergency Record |
| Schedule | 24hrs / 7days |
| PLAYBACK |
|---|
| Mode | Instant Playback / Search |
| Speed | Max. 120fps |
| Search type | Date/Time, Calendar/Time-line, Event, Thumbnail(Interval/Motion), Text, Bookmark |
| Block playback | 1day ~ 365days |
| EVENT & ALARM |
|---|
| Event source | Motion detection, Sensor input, Video Loss, Text input, AI, System |
| Event check schedule | 24hrs / 7days |
| Event action | Relay, Buzzer, E-mail, FTP, Video pop-up, Camera Preset, Mobile Alarm Push, System alarm |
| MD area | 15×10 |
| Text input | POS/ATM support, AVE VSI Pro/Hydra support |
| SYSTEM ALARM |
|---|
| Event source | HDD fail. HDD almost full, Password fail, WRS/DDNS fail, Recording Fail |
| Event action | Pop-up Message, Buzzer, E-mail, Relay, Mobile Alarm Push |
| AUDIO |
|---|
| Input/output | 4 RCA input / HDMI & RCA output |
| Compression | G.711 |
| Direction | Both |
| PTZ |
|---|
| Protocols | HIK-C, AHD, C1080(D1080), C1080PT-Z20, Pelco-D, Pelco-P, Samsung, Panasonic and others |
| NETWORK |
|---|
| Interface | 1 Fast Ethernet (10/100Mbps) |
| Type | Static IP, Dynamic IP |
| DDNS | WNS, DynDNS, NoIP, WRS |
| Bandwidth limit | 1~77Mbps |
| NTP | Server / Client / Both |
| Users | Total 10 Users (Monitor + Playback) Playback 3 Users |
| RTSP | Supported |
| UPnP | UPnP auto port forwarding |
| Streaming | H.264 or H.265 stream, High resolution
1 additional H.264 or H.265 stream, Normal resolution
1 JPEG stream, Normal resolution |
| Service streaming | Service Channel or Remote DVR |
| TLS | Supported |
| SECURITY |
|---|
| User level | 1 admin, 10 users |
| User privilege | Menu, PTZ, Relay, Playback, Power off, Copy, Network MIC, Camera setup |
| IP filtering | Supported |
| STORAGE & BACKUP |
|---|
| Storage devices | 1 internal SATA HDD |
| RAID Level | Not supported |
| File system | High-performance proprietary file system
Data-loss protection against power interrupt |
| Capacity | Max. 128TB with eSATA
20TB HDD Supported per SATA Port |
| Backup type | Multi-channel exe file, Single channel avi file, JPEG(Capture) |
| Backup device | 2 USB 2.0 drive (1 front, 1 rear)
FAT32(Max 32GB), NTFS (Min. 1GB) |
| S.M.A.R.T. | Health checking and alarm, Reallocation sector monitoring and alarm |
| SERIAL & I/O |
|---|
| Serial port | 1 RS-485 |
| Sensor input | 4 Dry-contacts + Sensor of IP Camera |
| Relay output | Software-controlled 1 relay output
Max 250V AC / 3A, 30V DC / 3A |
| CONTROLLER |
|---|
| Device | IR remote controller, Joystick Keyboard(option), Mouse |
| SOFTWARE |
|---|
| HTML5 Webviewer | Monitoring / Event / PTZ / Playback for browser supporting HTML5 |
| WebViewer | Monitoring / Event / PTZ / Playback for IE |
| Mobile viewer | Monitoring / Playback / Alarm Push / PTZ / Audio / Log View with iPhone & Android |
| CMS | Control Center, Max. 1024 units |
| SDK | ActiveX(COM) SDK |
| ENVIRONMENTAL & PHYSICAL |
|---|
| Dimension | 300(W) × 249(D) × 45(H) mm |
| Weight | 1.16 Kg (No HDD) |
| Operating temperature | 5°C~45°C (41°F ~ 113°F) |
| Operating humidity | 80% below, free of condensation |
| Power | DC 12V, 2A (Option : DC 12V / 5A) |
| Power consumption | 3.5W (with out HDD) |
| Approval | KC, FCC, CE |
